KONE solutions for firefighters elevators fulfill both the environmental and functional requirements of the EN 81-72:2015 standard. Our solutions include trap doors and ladders for rescue operations. All electrical and control equipment, their enclosures, and elevator operation in the event of fire meet the requirements of the standard.
A firefighters elevator can be used as a normal passenger elevator even if it has the additional protection, controls, and signalization to enable it to be operated by fire service personnel.
Contact your local KONE sales representative for more information.

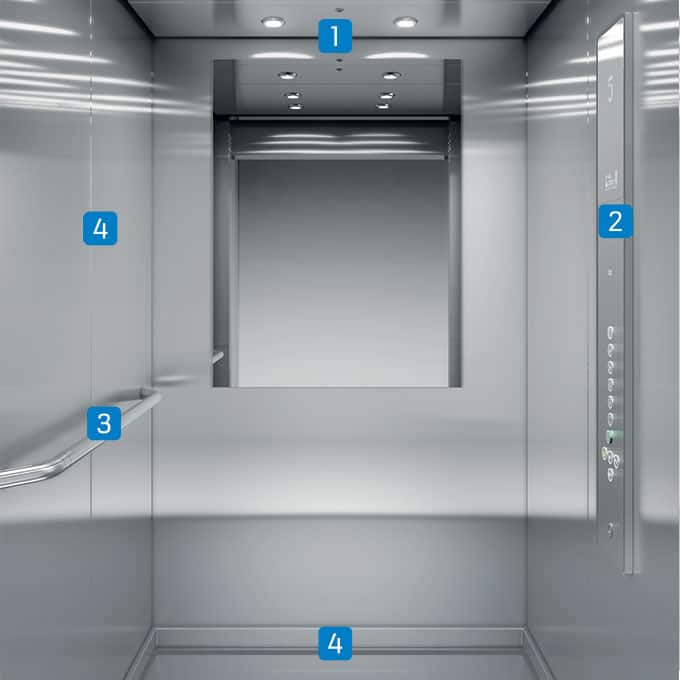

Car interior options for firefighters elevators
LED spot lights CL80FF, CL80FFL, CL88FF, CL88FFL, CL96FF, CL96FFL
2. Car operating panelPartial height KSC D23, KSC 143
Full height KSC D53 KSC D63, KSC D733
3. HandrailFull offering available subject to restrictions set by local building codes.
4. Walls and flooringFull offering available subject to restrictions set by local building codes.

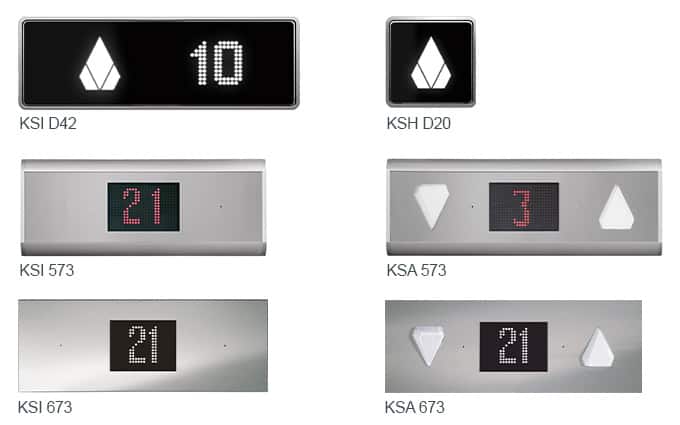

Landing device options*
KSH D20, KSI D42,
KSI 573, KSA 573,
KSH 670, KSI 673, KSA 673
*Firefighters access level always requires position indicator

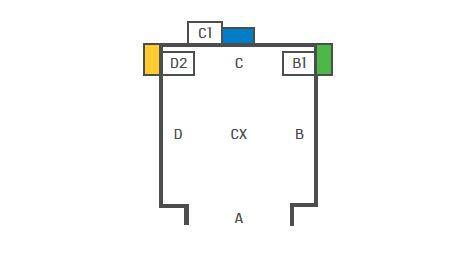

In-car ladder
Ladder can be located in the ceiling with trapdoor (CL88FFL) or to separate ladder cabinet (not available for KONE MonoSpace® 500 DX).

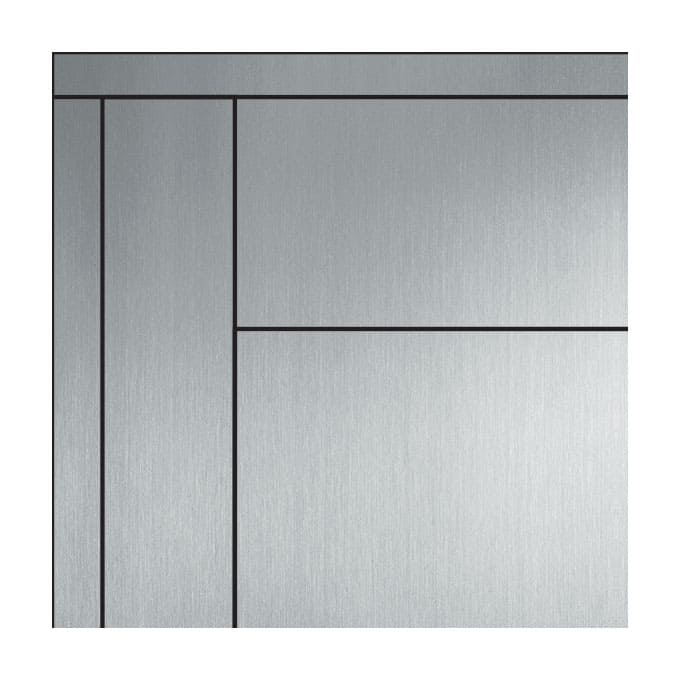

Landing door options
KES 600 and KES 800 doors
Stainless steel (F, K, M, H)
IP54 enclosure
